Horizontal Lathes

DN SOLUTIONS

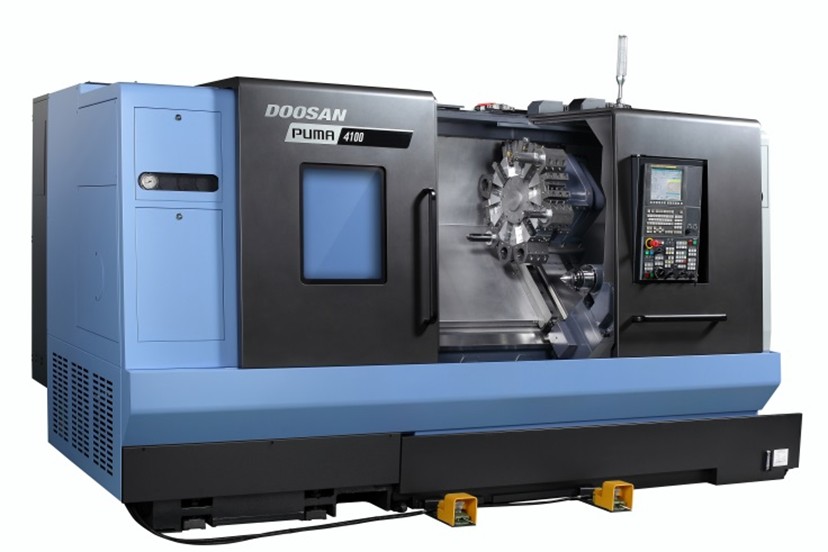

PUMA 4100MA

Technical specifications
Description

3-axis CNC lathe “DN Solutions mod. PUMA 4100MA” with driven tools and CNC DN Solutions-Fanuc i-Plus iHMI

Controller unit

Other CNC: Siem. 828D

Travels

Z Axis: 2155 mm

X Axis: 352 mm

Capacity

Max. swing diameter: 790 mm

Max. turning diameter: 560 mm

Max. turning lenght: 1010 mm

Bar working diameter: 165,5 mm

Turret

Stations: 12 nr

Live tools power: 23 kW

Spindle

Spindle chuck diameter: 533 mm

Spindle nose: ASA 15

Spindle speed: 1500 min-1

Spindle motor power: 37 kW

Product type
Product video
Catalogue
Ask for a quote
